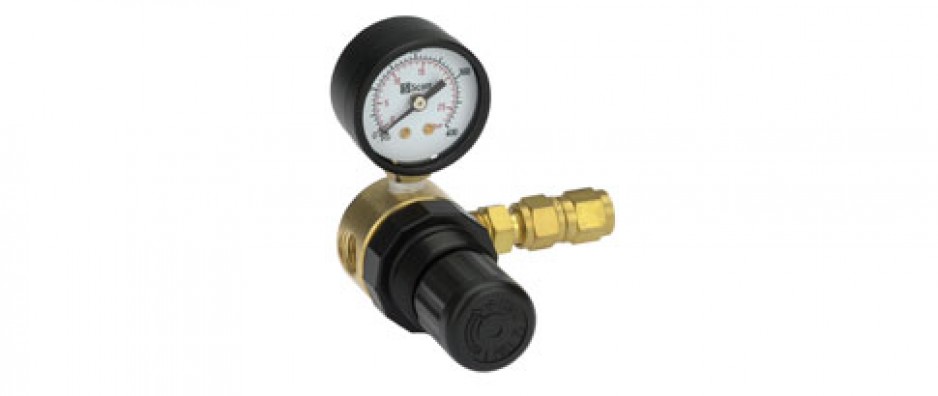

通用減壓閥 型號24

與4升和 48升 Scott/液化空氣運輸氣配合使用的壓力減壓閥

使用CGA160進樣接口連接14-升Scott/液化空氣運輸氣。使用CGA165進樣接口連接48-升Scott/液化空氣運輸氣。

規格:
*大進口壓力: 300 psig
出口壓力范圍: 2–10 psig
*大輸送壓力: 25 psig
工作溫度范圍: 35 °F -150 °F (2 °C -65 °C)
出口接頭: 螺紋標準 1/4"的螺母
材料構成:
主體：黃銅
膜片: Viton
閥座: 乙縮醛
密封: Viton

訂貨信息：

通用減壓閥 型號24

Benefits/Features

Miniature size.

Nonrelieving type.

Tamper-resistant, locking control knob.

Delivery pressure can be preset.

Specifications

Inlet Pressure: 300 psig (20 bar) maximum

Operating Temperature Range:

35°F to 150°F (1°C to 65°C)

Flow Coefficient: Cv = 0.36

Inlet Connection: CGA 160 or 165(1/4" AN flare)

Outlet Connection: CGA 165 1/4" NPT Female

Inlet Port: 1/4" NPT Female

Outlet Port: 1/4" NPT Female

Gauge: 1.5" (41 mm) face

Weight: 1 lb. (0.5 kg)

Materials of Construction

Body: Brass

Diaphragm: Viton?

Seat: Acetal

Seal: Viton?

Gauge: Phosphor bronze

Bonnet: Acetal

* Specify CGA 160 for SCOTTY 14 or CGA 165 for SCOTTY 48 or 221.

** Specify outlet connections below by adding a suffix code number only to the regulator model number. Assembly included.

Suffix Code 1: needle valve, brass, 1/4" NPT Male (Model No. Q4-61B-4M)

Suffix Code 2: hose connection, 1/4" diameter with integral flow orifice 1900 to 2800 mL/min (Model No. Q5-91H-B440)
